Math Problem Statement
answer it
Solution

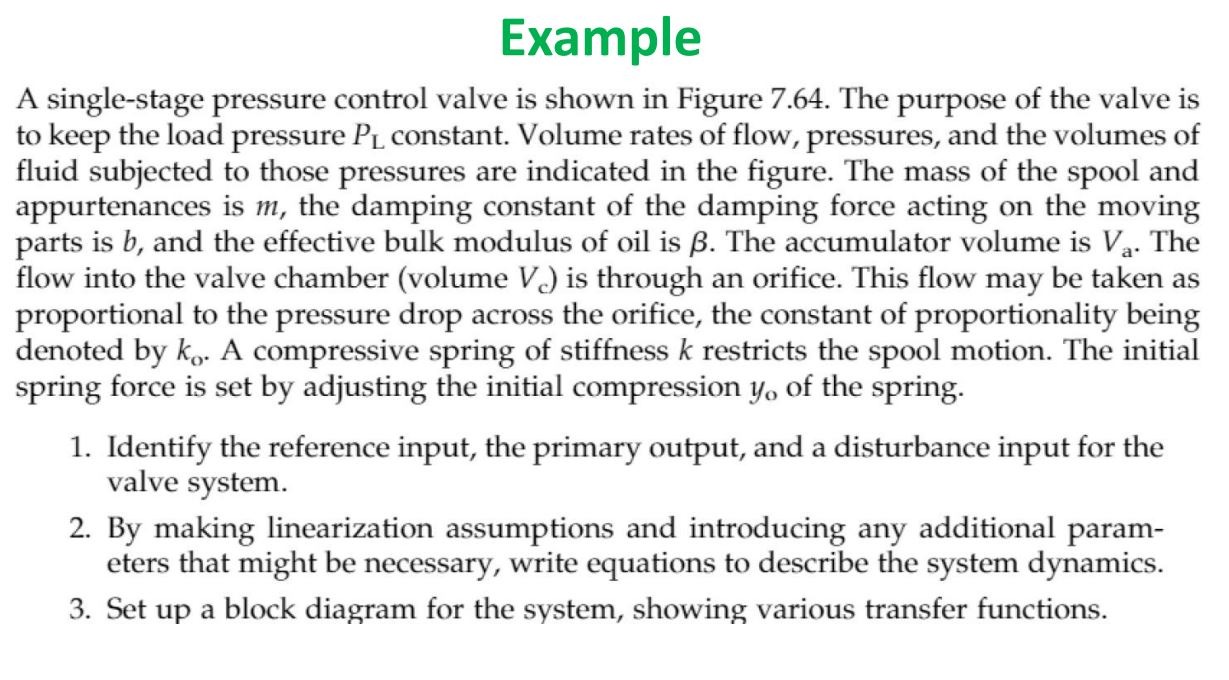

Let's address the problem from the images you've uploaded step by step:

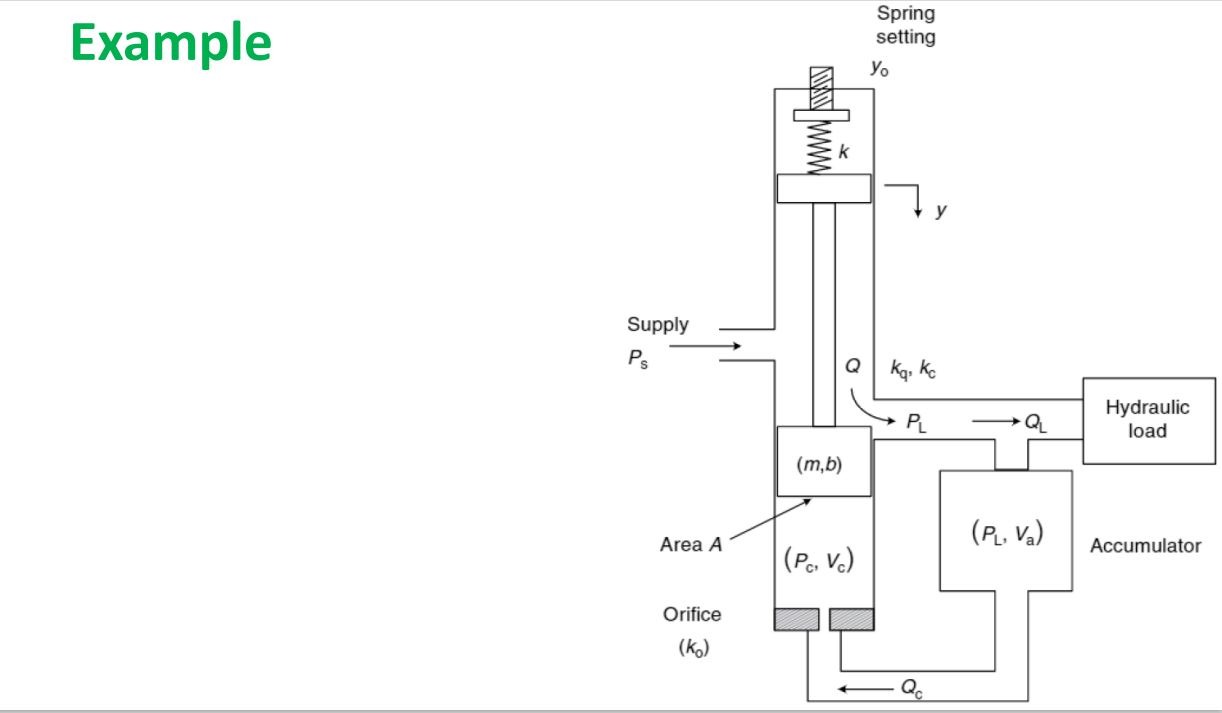

Problem 1: Identify the reference input, the primary output, and a disturbance input for the valve system.
-
Reference Input:
The reference input is the desired pressure at the load , which the system is designed to regulate and maintain constant. -
Primary Output:
The primary output is the actual load pressure , which the system adjusts based on the input and system dynamics. -
Disturbance Input:
The disturbance input includes any external factors that affect the load pressure . These could include:- Variations in the supply pressure ,
- Changes in the hydraulic load dynamics (e.g., load volume or flow ).
Problem 2: Linearization assumptions and dynamic equations for the system.
To derive the equations describing the system dynamics, we make the following linearization assumptions:
- Small deviations around operating points (e.g., pressure, displacement).
- Neglect higher-order nonlinearities (linearize spring and damping forces).
- Fluid flow through the orifice follows a proportional relationship (e.g., ).
Dynamic Equations:
The key components are:
-
Spring Force:
Spring force , where is the spring stiffness, and is the equilibrium displacement. -
Mass and Damping Force:
The spool's motion is influenced by mass and damping constant :
-
Chamber Pressure Dynamics:
Chamber pressure and volume are related to bulk modulus :
-
Orifice Flow:
Flow through the orifice is proportional to the pressure drop :
-
Hydraulic Load:
Load flow and accumulator pressure satisfy:
Problem 3: Block Diagram Representation
Steps to Create the Block Diagram:
-
Identify inputs:
- Reference input: Desired ,
- Disturbance input: or load dynamics .
-
Define system blocks:
- Spring and damping forces combined into a mechanical subsystem (relating and ),
- Hydraulic subsystem converting into ,
- Accumulator and load modeling dynamics.
-
Use transfer functions to link variables:
- Relate inputs and outputs using dynamic equations and Laplace transforms for linearized behavior.
Would you like a detailed derivation of the equations, the block diagram drawn, or a simulation setup for the system? Let me know!
Relative Questions:
- How is the bulk modulus crucial for hydraulic system dynamics?
- What assumptions can be made to simplify orifice flow modeling?
- How do changes in (supply pressure) propagate through the system?
- What role does damping play in the stability of the spool motion?
- How can feedback control improve this system's regulation of ?
Tip:
When modeling dynamic systems, always define operating points and small-signal approximations to simplify the analysis without losing critical system behavior.
