The image you uploaded shows a directed graph represented in two forms: an **Adjacency Matrix** and a **Linked Adjacency List**. Here’s an explanation of both:

---

### **Adjacency Matrix**:
- A matrix of size \(n \times n\), where \(n\) is the number of vertices in the graph.
- Each cell \((i, j)\) contains:
  - \(1\) if there is an edge from vertex \(i\) to vertex \(j\).
  - \(0\) if no such edge exists.
- It is particularly useful for dense graphs (many edges) but can consume a lot of memory for sparse graphs (few edges).

---

### **Linked Adjacency List**:
- Each vertex has a list of all other vertices it connects to directly.
- Efficient for sparse graphs as it uses memory only for edges that exist.
- Easier to traverse since you directly access neighboring nodes.

---

### **Graph Representation in the Image**:

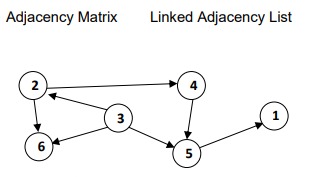

The directed graph shows:
- Edges between:
  - Vertex \(2 \to 6\)
  - Vertex \(2 \to 3\)
  - Vertex \(2 \to 4\)
  - Vertex \(3 \to 5\)
  - Vertex \(5 \to 1\)
  - Vertex \(5 \to 4\)
- No self-loops or bidirectional edges.

---

### Application:
- **Adjacency Matrix**: Ideal for algorithms like Floyd-Warshall (for shortest paths) as all connections can be accessed in constant time \(O(1)\).
- **Adjacency List**: Suitable for traversal algorithms like DFS and BFS as it reduces memory for sparse graphs.

---

Would you like me to:
1. Write the exact adjacency matrix and adjacency list for this graph?
2. Compare adjacency lists with other graph representations (e.g., edge list)?
3. Explain time/space complexity for matrix vs. list representations?
4. Solve a traversal algorithm (DFS or BFS) on this graph?
5. Convert this graph into an undirected one and analyze the impact?

---

**Tip**: Use adjacency matrices for dense graphs and adjacency lists for sparse graphs for better memory efficiency.

Explain the graph representations shown in the image (Adjacency Matrix and Linked Adjacency List) and their applications.

Learn how to represent graphs using adjacency matrices and linked adjacency lists with examples and applications. Explore their advantages, memory efficiency, and suitability for algorithms like BFS and Floyd-Warshall. Ideal for students studying graph theory.
