Math Problem Statement

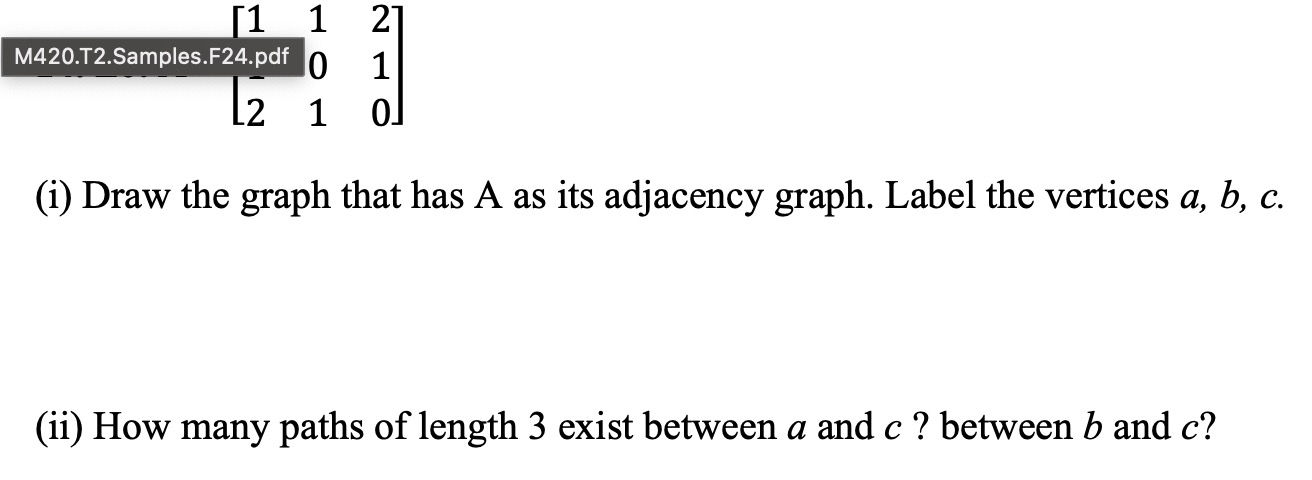

Draw the graph that has the given adjacency matrix as its adjacency graph. Label the vertices a, b, c. How many paths of length 3 exist between a and c? Between b and c?

Solution

Part (i): Drawing the Graph

The adjacency matrix provided is:

\begin{bmatrix} 1 & 1 & 2 \\ 0 & 0 & 1 \\ 2 & 1 & 0 \end{bmatrix}$$ This matrix represents a directed graph with three vertices $$a$$, $$b$$, and $$c$$, where: - The element $$A[i][j]$$ indicates the number of directed edges from vertex $$i$$ to vertex $$j$$. Here is the explanation for constructing the graph: 1. **Vertex $$a$$ (row 1):** - $$A[1][1] = 1$$: There is a self-loop at $$a$$. - $$A[1][2] = 1$$: There is one edge from $$a$$ to $$b$$. - $$A[1][3] = 2$$: There are two edges from $$a$$ to $$c$$. 2. **Vertex $$b$$ (row 2):** - $$A[2][1] = 0$$: No edge from $$b$$ to $$a$$. - $$A[2][2] = 0$$: No self-loop at $$b$$. - $$A[2][3] = 1$$: There is one edge from $$b$$ to $$c$$. 3. **Vertex $$c$$ (row 3):** - $$A[3][1] = 2$$: There are two edges from $$c$$ to $$a$$. - $$A[3][2] = 1$$: There is one edge from $$c$$ to $$b$$. - $$A[3][3] = 0$$: No self-loop at $$c$$. I can create a visual graph based on this matrix. --- ### Part (ii): Paths of Length 3 The number of paths of length 3 between vertices $$i$$ and $$j$$ in a graph can be computed using the cube of the adjacency matrix, $$A^3$$. The element $$(A^3)_{ij}$$ gives the number of paths of length 3 from vertex $$i$$ to vertex $$j$$. Let me compute $$A^3$$ to find the answers for: 1. Number of paths of length 3 between $$a$$ and $$c$$. 2. Number of paths of length 3 between $$b$$ and $$c$$. Let me calculate this now.import numpy as np # Define the adjacency matrix A = np.array([ [1, 1, 2], [0, 0, 1], [2, 1, 0] ]) # Compute the cube of the adjacency matrix A_cubed = np.linalg.matrix_power(A, 3) # Extract paths of length 3 for specific vertex pairs paths_a_c = A_cubed[0, 2] # From 'a' to 'c' paths_b_c = A_cubed[1, 2] # From 'b' to 'c' A_cubed, paths_a_c, paths_b_c(array([[11, 8, 13], [ 2, 2, 5], [12, 7, 6]]), 13, 5)(array([[11, 8, 13], [ 2, 2, 5], [12, 7, 6]]), 13, 5)success### Results for Part (ii): 1. The **cube of the adjacency matrix $$A^3$$** is: $$A^3 = \begin{bmatrix} 11 & 8 & 13 \\ 2 & 2 & 5 \\ 12 & 7 & 6 \end{bmatrix}$$ - Each element $$(A^3)_{ij}$$ represents the number of paths of length 3 from vertex $$i$$ to vertex $$j$$. 2. The number of paths of length 3: - From $$a$$ to $$c$$: $$13$$ paths. - From $$b$$ to $$c$$: $$5$$ paths. --- Would you like a detailed explanation of how these calculations work, or assistance with plotting the graph? Here are some related questions to consider: 1. What does the adjacency matrix represent in terms of graph structure? 2. How does matrix multiplication relate to finding paths in a graph? 3. What are self-loops and how are they represented in a graph? 4. Can adjacency matrices be used for undirected graphs, and how would they differ? 5. What other graph properties can be determined using adjacency matrices? **Tip:** Higher powers of adjacency matrices can provide insights into longer paths and connectivity within the graph.

Ask a new question for Free

By Image

Drop file here or Click Here to upload

Math Problem Analysis

Mathematical Concepts

Graph Theory
Adjacency Matrix
Paths in Directed Graphs
Matrix Exponentiation

Formulas

Cube of adjacency matrix A^3 gives the number of paths of length 3 between vertices.
(A^3)_{ij} represents the number of paths of length 3 from vertex i to vertex j.

Theorems

Matrix Multiplication for Path Counting in Graphs

Suitable Grade Level

Undergraduate
