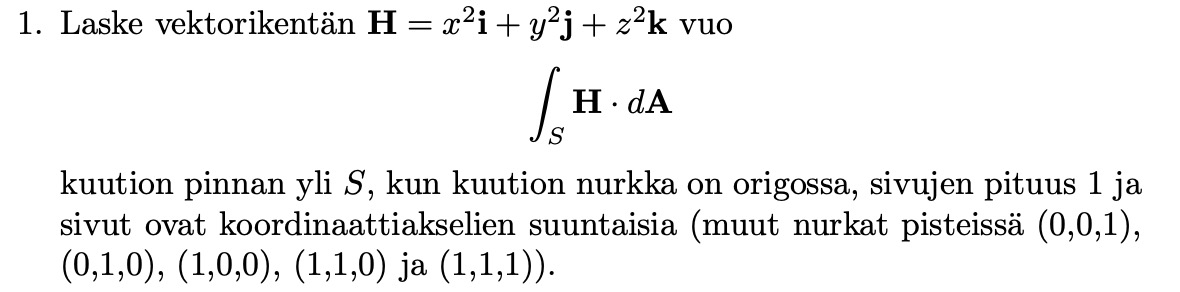

We are tasked to compute the flux of the vector field $\mathbf{H} = x^2 \mathbf{i} + y^2 \mathbf{j} + z^2 \mathbf{k}$ through the surface $S$ of a cube with corners at $(0,0,0)$ and $(1,1,1)$, meaning it has side lengths of 1 and its faces are aligned with the coordinate axes.

The flux through the surface $S$ is given by the surface integral:

$\iint_S \mathbf{H} \cdot \mathbf{dA}$

Solution Steps

1. Gauss's Divergence Theorem

The divergence theorem allows us to convert a surface integral to a volume integral over the cube. Mathematically,

$\iint_S \mathbf{H} \cdot \mathbf{dA} = \iiint_V \nabla \cdot \mathbf{H} \, dV$

Here:

• $V$ is the volume enclosed by the surface $S$,
• $\nabla \cdot \mathbf{H}$ is the divergence of $\mathbf{H}$.

2. Calculate the Divergence $\nabla \cdot \mathbf{H}$

The vector field $\mathbf{H}$ is given as:

$\mathbf{H} = x^2 \mathbf{i} + y^2 \mathbf{j} + z^2 \mathbf{k}$

The divergence of $\mathbf{H}$ is:

$\nabla \cdot \mathbf{H} = \frac{\partial}{\partial x} (x^2) + \frac{\partial}{\partial y} (y^2) + \frac{\partial}{\partial z} (z^2)$

Computing each term:

• $\frac{\partial}{\partial x} (x^2) = 2x$,
• $\frac{\partial}{\partial y} (y^2) = 2y$,
• $\frac{\partial}{\partial z} (z^2) = 2z$.

Thus,

$\nabla \cdot \mathbf{H} = 2x + 2y + 2z.$

3. Set Up the Volume Integral

The volume integral over the cube $0 \leq x, y, z \leq 1$ is:

$\iiint_V \nabla \cdot \mathbf{H} \, dV = \iiint_V (2x + 2y + 2z) \, dV.$

Split the integral into three parts:

$\iiint_V (2x + 2y + 2z) \, dV = 2 \iiint_V x \, dV + 2 \iiint_V y \, dV + 2 \iiint_V z \, dV.$

The region $V$ is the cube $0 \leq x, y, z \leq 1$. The integral of $x$, $y$, or $z$ over this cube is:

$\int_0^1 \int_0^1 \int_0^1 x \, dx \, dy \, dz = \int_0^1 x \, dx \cdot \int_0^1 dy \cdot \int_0^1 dz.$

Each component evaluates as follows:

• $\int_0^1 x \, dx = \frac{x^2}{2} \Big|_0^1 = \frac{1}{2}$,
• $\int_0^1 dy = 1$,
• $\int_0^1 dz = 1$.

Thus,

$\iiint_V x \, dV = \frac{1}{2}, \quad \iiint_V y \, dV = \frac{1}{2}, \quad \iiint_V z \, dV = \frac{1}{2}.$

4. Combine the Results

Now summing up the contributions:

$\iiint_V (2x + 2y + 2z) \, dV = 2 \left( \frac{1}{2} \right) + 2 \left( \frac{1}{2} \right) + 2 \left( \frac{1}{2} \right).$

Simplify:

$\iiint_V (2x + 2y + 2z) \, dV = 2 \cdot \frac{3}{2} = 3.$

Final Answer:

The flux of the vector field $\mathbf{H}$ through the surface $S$ of the cube is:

$\boxed{3}.$
