Math Problem Statement

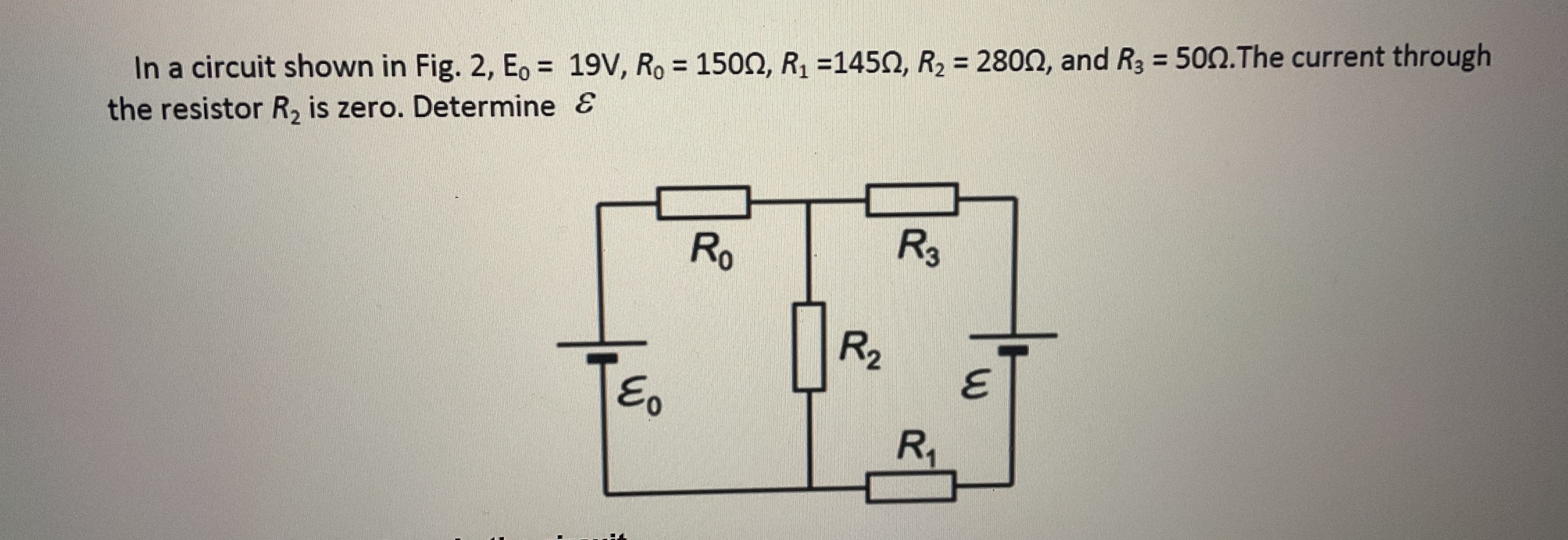

In a circuit shown in Fig. 2, E0 = 19V, R0 = 150Ω, R1 = 145Ω, R2 = 280Ω, and R3 = 50Ω. The current through the resistor R2 is zero. Determine E.

Solution

Problem Analysis:

This circuit involves two batteries (E0\mathcal{E}_0 and E\mathcal{E}) and resistors R0R_0, R1R_1, R2R_2, and R3R_3. The problem states that the current through resistor R2R_2 is zero. This condition implies there is no potential difference across R2R_2, meaning the potentials at its two terminals are equal.

We need to calculate E\mathcal{E}, given the following values:

  • E0=19V\mathcal{E}_0 = 19 \, \text{V}
  • R0=150ΩR_0 = 150 \, \Omega
  • R1=145ΩR_1 = 145 \, \Omega
  • R2=280ΩR_2 = 280 \, \Omega
  • R3=50ΩR_3 = 50 \, \Omega

Solution:

Step 1: Potential Across R2R_2 is Zero

If the current through R2R_2 is zero, the potential at both ends of R2R_2 must be the same. Let us denote the potentials of the top and bottom nodes connected to R2R_2 by VAV_A and VBV_B, respectively.

This gives: VA=VBV_A = V_B


Step 2: Voltage at VAV_A

The voltage at VAV_A is determined by the battery E0\mathcal{E}_0 and the current through R0R_0. Let the current through R0R_0 be I0I_0. Using Ohm's Law: I0=E0R0I_0 = \frac{\mathcal{E}_0}{R_0}

Substitute E0=19V\mathcal{E}_0 = 19 \, \text{V} and R0=150ΩR_0 = 150 \, \Omega: I0=19150=0.127AI_0 = \frac{19}{150} = 0.127 \, \text{A}

The voltage at VAV_A is: VA=E0I0R0V_A = \mathcal{E}_0 - I_0 R_0

Substitute: VA=19(0.127×150)=1919=0VV_A = 19 - (0.127 \times 150) = 19 - 19 = 0 \, \text{V}


Step 3: Voltage at VBV_B

The voltage at VBV_B is determined by the battery E\mathcal{E}, and the current through R1R_1 and R3R_3. Let the current through these resistors be I1I_1. Since R2R_2 has no current, R1R_1 and R3R_3 form a single series branch.

The total resistance in this branch is: Rtotal=R1+R3=145+50=195ΩR_{\text{total}} = R_1 + R_3 = 145 + 50 = 195 \, \Omega

The current in this branch is: I1=ERtotalI_1 = \frac{\mathcal{E}}{R_{\text{total}}}

The voltage at VBV_B is: VB=EI1R1V_B = \mathcal{E} - I_1 R_1

Substitute I1=E195I_1 = \frac{\mathcal{E}}{195}: VB=E(E195)R1V_B = \mathcal{E} - \left(\frac{\mathcal{E}}{195}\right) R_1

Substitute R1=145ΩR_1 = 145 \, \Omega: VB=E(E195)(145)V_B = \mathcal{E} - \left(\frac{\mathcal{E}}{195}\right)(145)

Simplify: VB=E(1145195)V_B = \mathcal{E} \left(1 - \frac{145}{195}\right)

VB=E(50195)V_B = \mathcal{E} \left(\frac{50}{195}\right)


Step 4: Equating VAV_A and VBV_B

Since VA=VBV_A = V_B, we have: 0=E(50195)0 = \mathcal{E} \left(\frac{50}{195}\right)

Solve for E\mathcal{E}: E=0V\mathcal{E} = 0 \, \text{V}


Final Answer:

The value of E\mathcal{E} is: E=0V\boxed{\mathcal{E} = 0 \, \text{V}}

Let me know if you'd like further clarifications or assistance! 😊


Follow-up Questions:

  1. How does the condition of zero current through R2R_2 simplify the circuit analysis?
  2. What would happen if E0\mathcal{E}_0 was different (e.g., 25V25 \, \text{V})?
  3. Why does the potential difference across R2R_2 being zero imply VA=VBV_A = V_B?
  4. How would the problem change if R2R_2 had a current flowing through it?
  5. Can we calculate the power dissipated in the resistors for this circuit?

Tip:

Always simplify a circuit based on given conditions (e.g., zero current through a branch) to reduce unnecessary calculations.
