The problem is asking for the current through resistor \( R_5 \) in the given circuit, where we have five resistors and a battery with a given voltage. To calculate the current, we need to first determine the equivalent resistance of the circuit.

### Steps to approach the problem:

1. **Identify the resistors’ connections**: The resistors \( R_1, R_2, R_3, R_4, R_5 \) may be connected in series and/or parallel, so we need to simplify the circuit.

2. **Find the total resistance**: Calculate the equivalent resistance \( R_{\text{eq}} \) of the circuit using series and parallel rules.

    - **Series connection**: For resistors in series, the total resistance is the sum of individual resistances:
      \[
      R_{\text{total}} = R_1 + R_2 + R_3 + \dots
      \]

    - **Parallel connection**: For resistors in parallel, the total resistance is found by:
      \[
      \frac{1}{R_{\text{total}}} = \frac{1}{R_1} + \frac{1}{R_2} + \dots
      \]

3. **Use Ohm’s Law**: Once the total resistance is found, use Ohm's Law to calculate the total current \( I_{\text{total}} \):
   \[
   I_{\text{total}} = \frac{V}{R_{\text{eq}}}
   \]
   where \( V \) is the voltage of the battery.

4. **Current through \( R_5 \)**: Once we find the current in the circuit, the current through each resistor can be determined based on the configuration of the resistors (whether in series or parallel).

Would you like me to guide you through solving the equivalent resistance and current in this circuit step-by-step? Let me know if you'd like to proceed with this or if you have additional details to share.

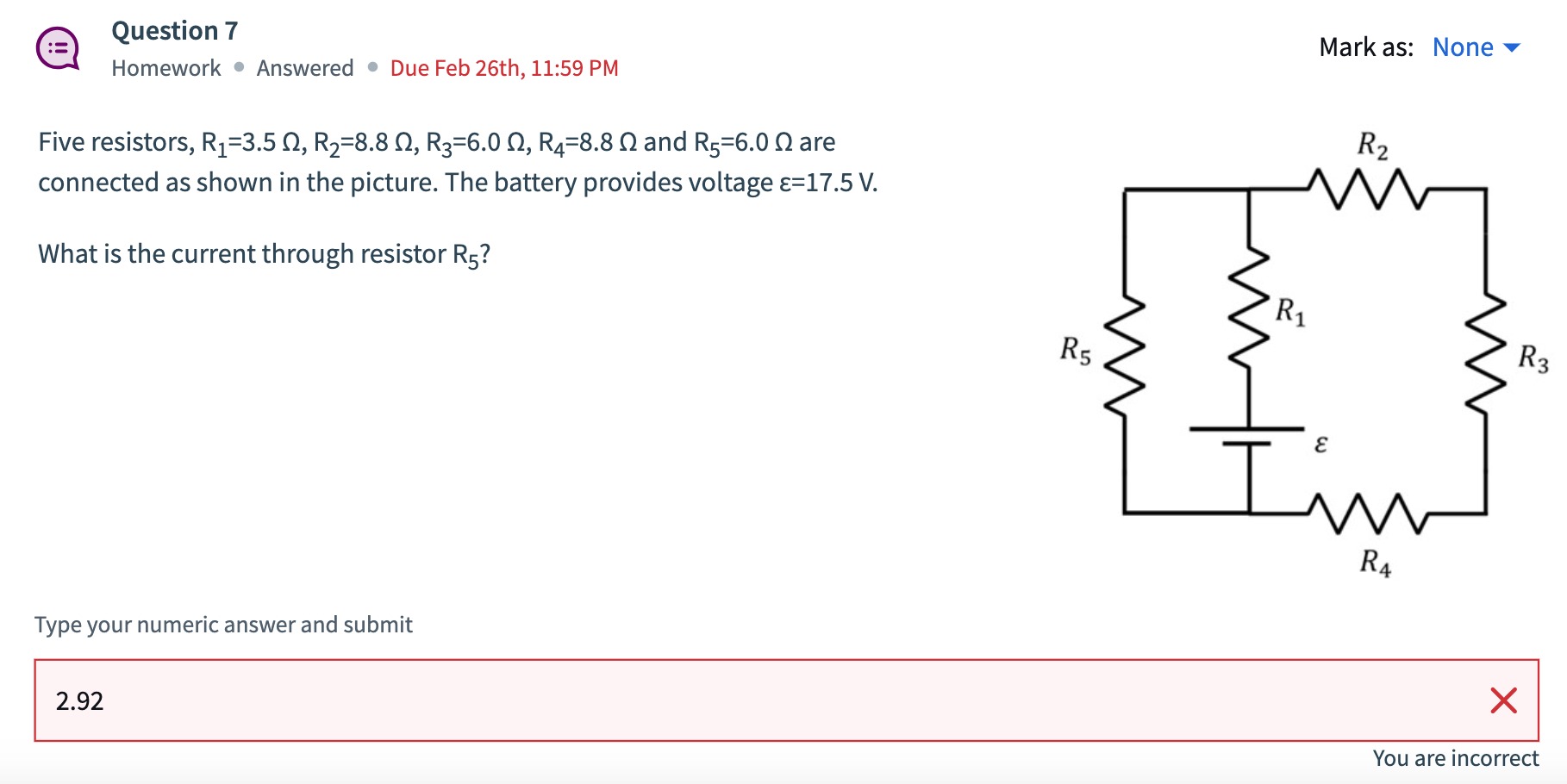

Five resistors, R1 = 3.5 Ω, R2 = 8.8 Ω, R3 = 6.0 Ω, R4 = 8.8 Ω, and R5 = 6.0 Ω are connected as shown in the picture. The battery provides voltage ε = 17.5 V. What is the current through resistor R5?

Learn how to calculate the current through resistor R5 in a mixed-series and parallel resistor circuit using Ohm’s Law and circuit analysis techniques. Given resistor values and a 17.5V battery, this problem demonstrates how to find the equivalent resistance and determine current flow. Suitable for Grades 10-12.
