To solve the given problem using Dijkstra's algorithm and find the shortest path between nodes $u$ and $v$:

Steps of Dijkstra's Algorithm:

1. Initialize:

   • Set the distance from $u$ to itself as 0.
   • Set the distance from $u$ to all other vertices as infinity ($\infty$).
   • Use a priority queue (or similar structure) to track the next closest vertex to visit.

2. Relaxation:

   • Pick the vertex with the smallest tentative distance (starting with $u$).
   • Update the distances to its neighbors if a shorter path is found.
   • Repeat for all unvisited vertices.

3. Termination:

   • Stop when the target vertex $v$ has been processed.

Applying the Algorithm:

Step-by-Step Solution:

Graph Representation:

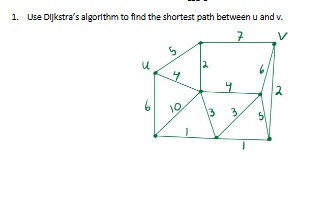

• Vertices: $u, v, w, x, y, z$ (as per the diagram).
• Edge weights as shown.

1. Initialization:

   • Distances: $d[u] = 0$, $d[v] = \infty$, $d[w] = \infty$, $d[x] = \infty$, $d[y] = \infty$, $d[z] = \infty$.
   • Unvisited: $\{ u, v, w, x, y, z \}$.

2. Iteration:

   From $u$:

   • Visit $u$: $d[u] = 0$.
   • Update neighbors:
     • $w: d[w] = \min(\infty, 0 + 6) = 6$,
     • $x: d[x] = \min(\infty, 0 + 5) = 5$.
   • Unvisited: $\{ v, w, x, y, z \}$.

   Next Closest:

   • Visit $x$: $d[x] = 5$.
   • Update neighbors:
     • $w: d[w] = \min(6, 5 + 4) = 6$ (no update),
     • $y: d[y] = \min(\infty, 5 + 1) = 6$.
   • Unvisited: $\{ v, w, y, z \}$.

   Next Closest:

   • Visit $w$: $d[w] = 6$.
   • Update neighbors:
     • $z: d[z] = \min(\infty, 6 + 10) = 16$,
     • $y: d[y] = \min(6, 6 + 3) = 6$ (no update).
   • Unvisited: $\{ v, y, z \}$.

   Next Closest:

   • Visit $y$: $d[y] = 6$.
   • Update neighbors:
     • $v: d[v] = \min(\infty, 6 + 7) = 13$,
     • $z: d[z] = \min(16, 6 + 5) = 11$.
   • Unvisited: $\{ v, z \}$.

   Next Closest:

   • Visit $z$: $d[z] = 11$.
   • Update neighbors:
     • $v: d[v] = \min(13, 11 + 2) = 13$.
   • Unvisited: $\{ v \}$.

   Final Visit:

   • Visit $v$: $d[v] = 13$.

3. Shortest Path: The shortest path distance from $u$ to $v$ is 13.

Backtracking the Path:

1. Start at $v$ (distance = 13).
2. From $z$ to $v$: cost $2$ (path includes $z$).
3. From $y$ to $z$: cost $5$ (path includes $y$).
4. From $x$ to $y$: cost $1$ (path includes $x$).
5. From $u$ to $x$: cost $5$.

Path: $u \to x \to y \to z \to v$.

Would you like a detailed explanation of any step, or do you need a graphical illustration of this process?
