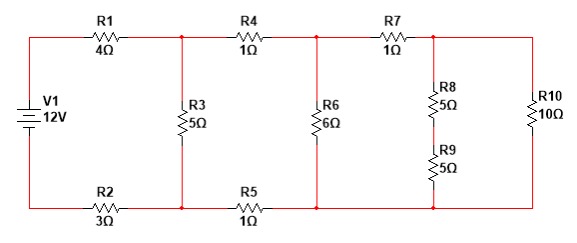

calculate total resistance of this circuit

To calculate the total resistance of the given circuit, we will analyze it step by step by combining series and parallel resistances.

1. **Identify Groups of Parallel and Series Resistors:**
   - **R8 and R9** are in parallel.
   - The resulting resistance of \( R8 \) and \( R9 \) is in series with \( R10 \).
   - This combination is in parallel with \( R7 \).
   - The resulting resistance of that group is in series with \( R6 \).
   - This entire branch is in parallel with \( R3 \), \( R4 \), and \( R5 \) (each separate).
   - The final combined resistance is in series with \( R1 \) and \( R2 \).

---

### Steps for Calculation:
#### Step 1: Combine \( R8 \) and \( R9 \) (Parallel):
\[
R_{89} = \frac{1}{\frac{1}{R8} + \frac{1}{R9}} = \frac{1}{\frac{1}{5} + \frac{1}{5}} = \frac{1}{\frac{2}{5}} = 2.5 \, \Omega
\]

#### Step 2: Add \( R10 \) (Series with \( R89 \)):
\[
R_{8910} = R_{89} + R10 = 2.5 + 10 = 12.5 \, \Omega
\]

#### Step 3: Combine \( R8910 \) with \( R7 \) (Parallel):
\[
R_{89107} = \frac{1}{\frac{1}{R_{8910}} + \frac{1}{R7}} = \frac{1}{\frac{1}{12.5} + \frac{1}{1}} = \frac{1}{\frac{1}{12.5} + 1} = \frac{1}{0.08 + 1} = \frac{1}{1.08} \approx 0.926 \, \Omega
\]

#### Step 4: Add \( R6 \) (Series with \( R89107 \)):
\[
R_{891076} = R_{89107} + R6 = 0.926 + 6 \approx 6.926 \, \Omega
\]

#### Step 5: Combine \( R891076 \) with \( R3 \), \( R4 \), and \( R5 \) (All Parallel):
\[
R_{\text{parallel group}} = \frac{1}{\frac{1}{R_{891076}} + \frac{1}{R3} + \frac{1}{R4} + \frac{1}{R5}}
\]
Substituting the values:
\[
R_{\text{parallel group}} = \frac{1}{\frac{1}{6.926} + \frac{1}{5} + \frac{1}{1} + \frac{1}{1}}
\]
\[
R_{\text{parallel group}} = \frac{1}{0.144 + 0.2 + 1 + 1} = \frac{1}{2.344} \approx 0.4268 \, \Omega
\]

#### Step 6: Add \( R1 \) and \( R2 \) (Series with \( R_{\text{parallel group}} \)):
\[
R_{\text{total}} = R1 + R2 + R_{\text{parallel group}} = 4 + 3 + 0.4268 \approx 7.4268 \, \Omega
\]

---

### Final Answer:
The total resistance of the circuit is approximately:
\[
\boxed{7.43 \, \Omega}
\]

Would you like a detailed breakdown of any specific part of the calculation or further analysis?

---

### Related Questions:
1. How do you calculate current through the circuit if the voltage is 12V?
2. What is the equivalent resistance if one of the resistors is removed (e.g., \( R10 \))?
3. How does adding an additional resistor in parallel affect the overall resistance?
4. What are the power dissipations across each resistor if the total current is known?
5. How to determine the voltage drop across \( R891076 \)?

**Tip:** Always combine resistors step-by-step, starting from the innermost groups of series or parallel connections!
