To determine the correct box plot, we need to first identify the 5 key statistical points from the data:

Data:

• 24, 19, 17, 20, 19, 22, 15, 15, 12

Steps:

1. Order the Data: Sorted data: 12, 15, 15, 17, 19, 19, 20, 22, 24

2. Identify the Five Number Summary:

   • Minimum: 12
   • First Quartile (Q1): Median of the lower half (15)
   • Median (Q2): Middle value (19)
   • Third Quartile (Q3): Median of the upper half (20)
   • Maximum: 24

3. Plotting the Box Plot: Based on the summary, the box plot should have:

   • A box from Q1 (15) to Q3 (20), with a line at the median (19).
   • The whiskers extending from the minimum (12) to Q1 (15) and from Q3 (20) to the maximum (24).
   • Outliers can be detected, but none appear to exist in this case.

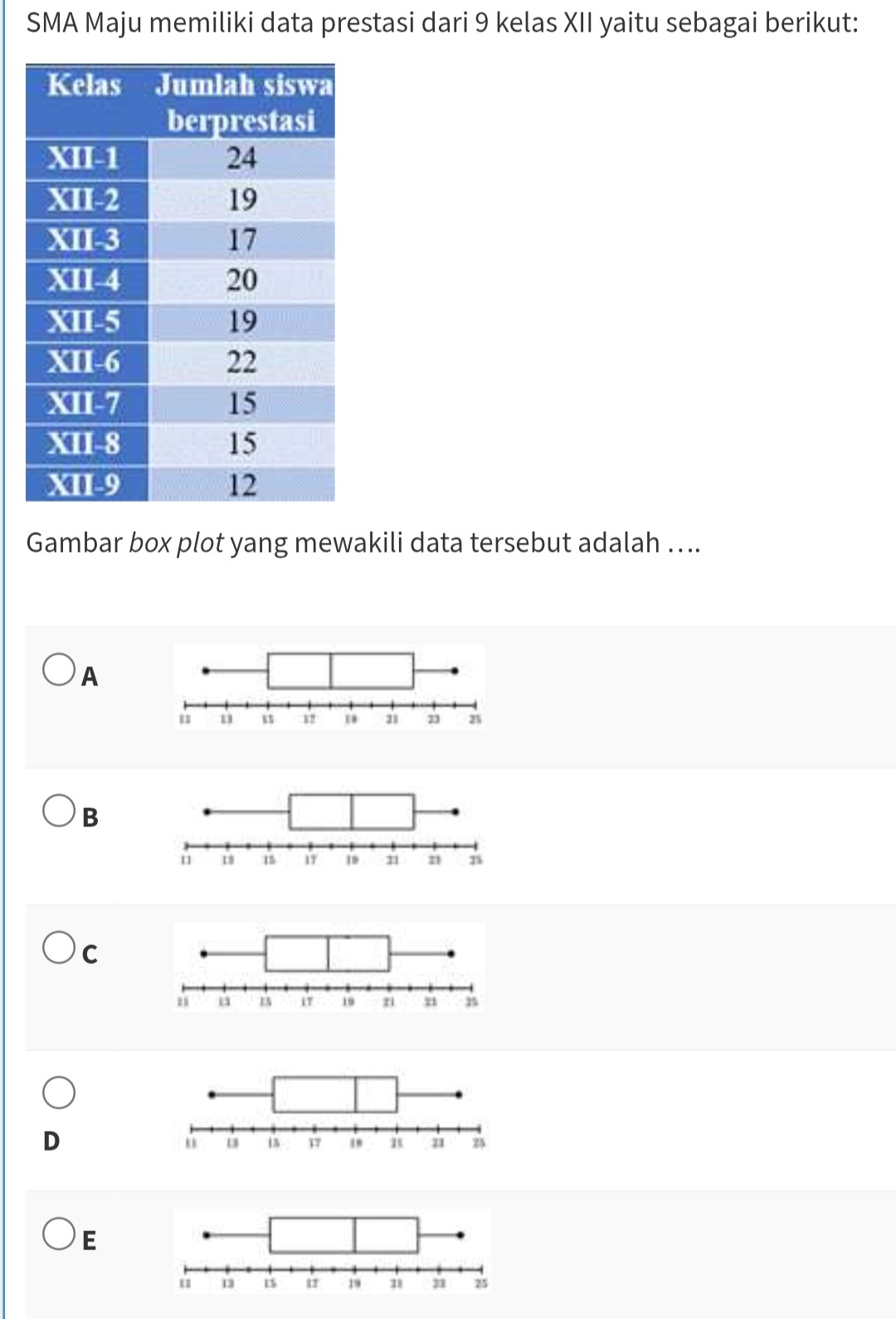

Upon analyzing the provided options, the box plot that correctly represents this data is Option C.
