Math Problem Statement

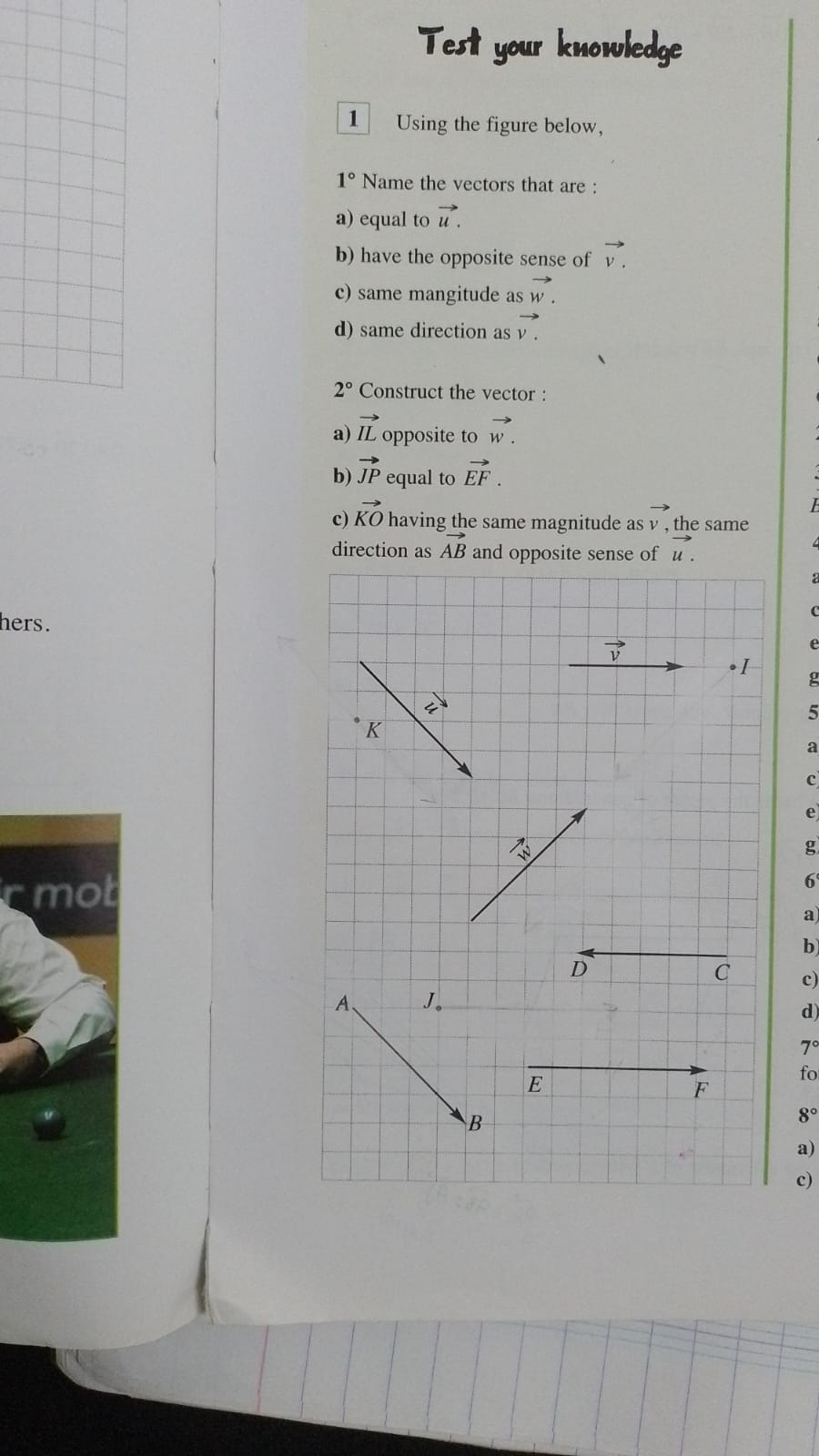

Using the figure provided, answer the following questions: 1° Name the vectors that are: a) Equal to \( \vec{u} \). b) Have the opposite sense of \( \vec{v} \). c) Have the same magnitude as \( \vec{w} \). d) Have the same direction as \( \vec{v} \). 2° Construct the vectors: a) \( \vec{IL} \) opposite to \( \vec{w} \). b) \( \vec{JP} \) equal to \( \vec{EF} \). c) \( \vec{KO} \) having the same magnitude as \( \vec{v} \), the same direction as \( \vec{AB} \), and opposite sense to \( \vec{u} \).

Solution

Let us analyze the problem and work step by step to solve it.

1°) Name the vectors:

We will identify vectors according to the figure provided:

a) Equal to u\vec{u}:

A vector is equal to u\vec{u} if it has the same magnitude, direction, and sense as u\vec{u}.
Answer: The vector equal to u\vec{u} is AB\vec{AB}.

b) Opposite sense of v\vec{v}:

A vector is opposite to v\vec{v} if it has the same magnitude and direction, but opposite sense.
Answer: The vector opposite to v\vec{v} is DC\vec{DC}.

c) Same magnitude as w\vec{w}:

A vector with the same magnitude as w\vec{w} should have the same length but can have any direction or sense.
Answer: The vector with the same magnitude as w\vec{w} is EF\vec{EF}.

d) Same direction as v\vec{v}:

A vector with the same direction as v\vec{v} can have any magnitude and the same sense or opposite.
Answer: The vectors with the same direction as v\vec{v} are EF\vec{EF} and DC\vec{DC}.


2°) Construct the vectors:

a) IL\vec{IL} opposite to w\vec{w}:

The vector opposite to w\vec{w} should be drawn with the same magnitude and direction as w\vec{w}, but the sense reversed. Place IL\vec{IL} accordingly.

b) JP\vec{JP} equal to EF\vec{EF}:

To construct JP\vec{JP}, ensure it has the same magnitude, direction, and sense as EF\vec{EF}.

c) KO\vec{KO} having the same magnitude as v\vec{v}, the same direction as AB\vec{AB}, and the opposite sense of u\vec{u}:

  1. The magnitude must match v\vec{v}.
  2. The direction should align with AB\vec{AB}.
  3. The sense should be opposite to u\vec{u}.

Draw KO\vec{KO} to satisfy all these properties.


Do you want me to elaborate on any part of this? Feel free to ask!

Here are 5 related questions to deepen your understanding:

  1. How do you determine if two vectors are equal?
  2. What is the difference between direction and sense in vectors?
  3. Can a vector have the same direction but a different sense? Give an example.
  4. How do you calculate the magnitude of a vector graphically?
  5. What are some real-world applications of opposite vectors?

Tip: Always consider magnitude, direction, and sense when comparing vectors.
