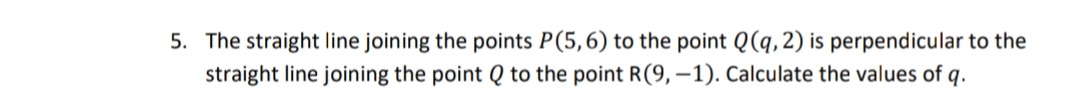

We are given two lines:

1. The line joining points $P(5, 6)$ and $Q(q, 2)$.
2. The line joining points $Q(q, 2)$ and $R(9, -1)$.

Since the lines are perpendicular, the product of their slopes must equal $-1$.

Step 1: Find the slopes of both lines.

The formula for the slope between two points $(x_1, y_1)$ and $(x_2, y_2)$ is: $m = \frac{y_2 - y_1}{x_2 - x_1}$

Slope of line $PQ$:

Using points $P(5, 6)$ and $Q(q, 2)$: $m_{PQ} = \frac{2 - 6}{q - 5} = \frac{-4}{q - 5}$

Slope of line $QR$:

Using points $Q(q, 2)$ and $R(9, -1)$: $m_{QR} = \frac{-1 - 2}{9 - q} = \frac{-3}{9 - q}$

Step 2: Use the condition that the lines are perpendicular.

For perpendicular lines, the product of their slopes must be $-1$: $m_{PQ} \times m_{QR} = -1$ Substitute the slopes: $\frac{-4}{q - 5} \times \frac{-3}{9 - q} = -1$ Simplify: $\frac{12}{(q - 5)(9 - q)} = -1$

Step 3: Solve for $q$.

Multiply both sides by $(q - 5)(9 - q)$ to eliminate the fraction: $12 = -(q - 5)(9 - q)$ Expand the right side: $12 = -(q(9 - q) - 5(9 - q))$ $12 = -(9q - q^2 - 45 + 5q)$ Simplify the equation: $12 = -(-q^2 + 14q - 45)$ $12 = q^2 - 14q + 45$ Move all terms to one side: $q^2 - 14q + 33 = 0$

Step 4: Solve the quadratic equation.

Use the quadratic formula: $q = \frac{-(-14) \pm \sqrt{(-14)^2 - 4(1)(33)}}{2(1)}$ $q = \frac{14 \pm \sqrt{196 - 132}}{2}$ $q = \frac{14 \pm \sqrt{64}}{2}$ $q = \frac{14 \pm 8}{2}$

So, the two possible values for $q$ are: $q = \frac{14 + 8}{2} = 11 \quad \text{or} \quad q = \frac{14 - 8}{2} = 3$

Final answer:

The values of $q$ are $q = 11$ and $q = 3$.
