Math Problem Statement

Sandia Method for calculating open-circuit voltage in photovoltaic cells or modules.

Solution

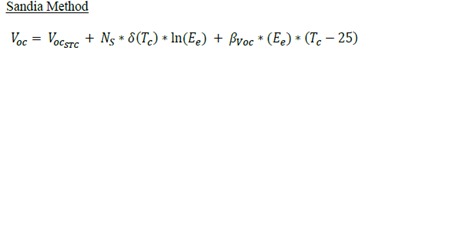

The image you've uploaded shows the "Sandia Method" for calculating the open-circuit voltage VOCV_{OC} of a photovoltaic (PV) cell or module under different conditions. Here’s a breakdown of the formula:

VOC=VOCSTC+NSδ(TC)ln(Ee)+βVOC(Ee)(TC25)V_{OC} = V_{OC_{STC}} + N_S \cdot \delta(T_C) \cdot \ln(E_e) + \beta_{VOC} \cdot (E_e) \cdot (T_C - 25)

Explanation of Terms:

  1. VOCV_{OC}: The open-circuit voltage under the specified conditions.
  2. VOCSTCV_{OC_{STC}}: The open-circuit voltage at Standard Test Conditions (STC), typically at TC=25CT_C = 25^\circ \text{C} and irradiance Ee=1000W/m2E_e = 1000 \, \text{W/m}^2.
  3. NSN_S: Number of cells in series within the PV module.
  4. δ(TC)\delta(T_C): A temperature-dependent coefficient that reflects the effect of cell temperature TCT_C on voltage.
  5. ln(Ee)\ln(E_e): The natural logarithm of irradiance EeE_e (measured in W/m2\text{W/m}^2) relative to standard conditions.
  6. βVOC\beta_{VOC}: The temperature coefficient for the open-circuit voltage, representing how VOCV_{OC} changes with temperature.
  7. TCT_C: The cell temperature in degrees Celsius.
  8. EeE_e: The irradiance on the PV module's surface (in W/m2\text{W/m}^2).

Purpose of the Formula:

This formula helps estimate the open-circuit voltage of a PV module under various conditions of irradiance and temperature, accounting for deviations from standard test conditions.

Would you like more details on how each term affects the calculation or have any specific questions?


Here are some related questions for further exploration:

  1. How does irradiance EeE_e influence the open-circuit voltage VOCV_{OC} in PV cells?
  2. Why is the logarithmic term ln(Ee)\ln(E_e) used in the Sandia Method?
  3. How can VOCV_{OC} vary with different numbers of cells in series NSN_S?
  4. What impact does the temperature coefficient βVOC\beta_{VOC} have on the PV cell's performance?
  5. How is VOCSTCV_{OC_{STC}} determined and why is it a reference point?

Tip: For accurate PV modeling, ensure temperature and irradiance values are adjusted for real-world conditions.
