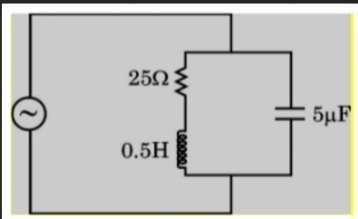

This is an RLC circuit. To solve the problem, let's analyze and compute each parameter step by step:

1. Total Impedance of the Circuit at Resonance:

At resonance, the inductive reactance ($X_L$) and capacitive reactance ($X_C$) cancel each other. The total impedance of the circuit will then be equal to the resistance $R$ in the circuit.

Given:

• $R = 25 \, \Omega$

At resonance: $Z_{\text{total}} = R = 25 \, \Omega$

2. Resonant Frequency ($f_r$):

The resonant frequency is determined using the formula: $f_r = \frac{1}{2\pi \sqrt{L C}}$ Where:

• $L = 0.5 \, \text{H}$
• $C = 5 \, \mu\text{F} = 5 \times 10^{-6} \, \text{F}$

Substituting: $f_r = \frac{1}{2\pi \sqrt{(0.5)(5 \times 10^{-6})}}$ $f_r = \frac{1}{2\pi \sqrt{2.5 \times 10^{-6}}}$ $f_r = \frac{1}{2\pi \times 0.0015811} \approx 100.8 \, \text{Hz}$

3. Bandwidth ($BW$):

The bandwidth is calculated as: $BW = \frac{R}{2\pi L}$ Substituting: $BW = \frac{25}{2\pi (0.5)} = \frac{25}{3.1416} \approx 7.96 \, \text{Hz}$

4. Quality Factor ($Q$):

The quality factor is determined as: $Q = \frac{f_r}{BW}$ Substituting the values: $Q = \frac{100.8}{7.96} \approx 12.66$

Final Answers:

1. Total Impedance at Resonance: $25 \, \Omega$
2. Resonant Frequency: $100.8 \, \text{Hz}$
3. Bandwidth: $7.96 \, \text{Hz}$
4. Quality Factor: $12.66$

Would you like a detailed explanation of any of these steps or related visualizations?
