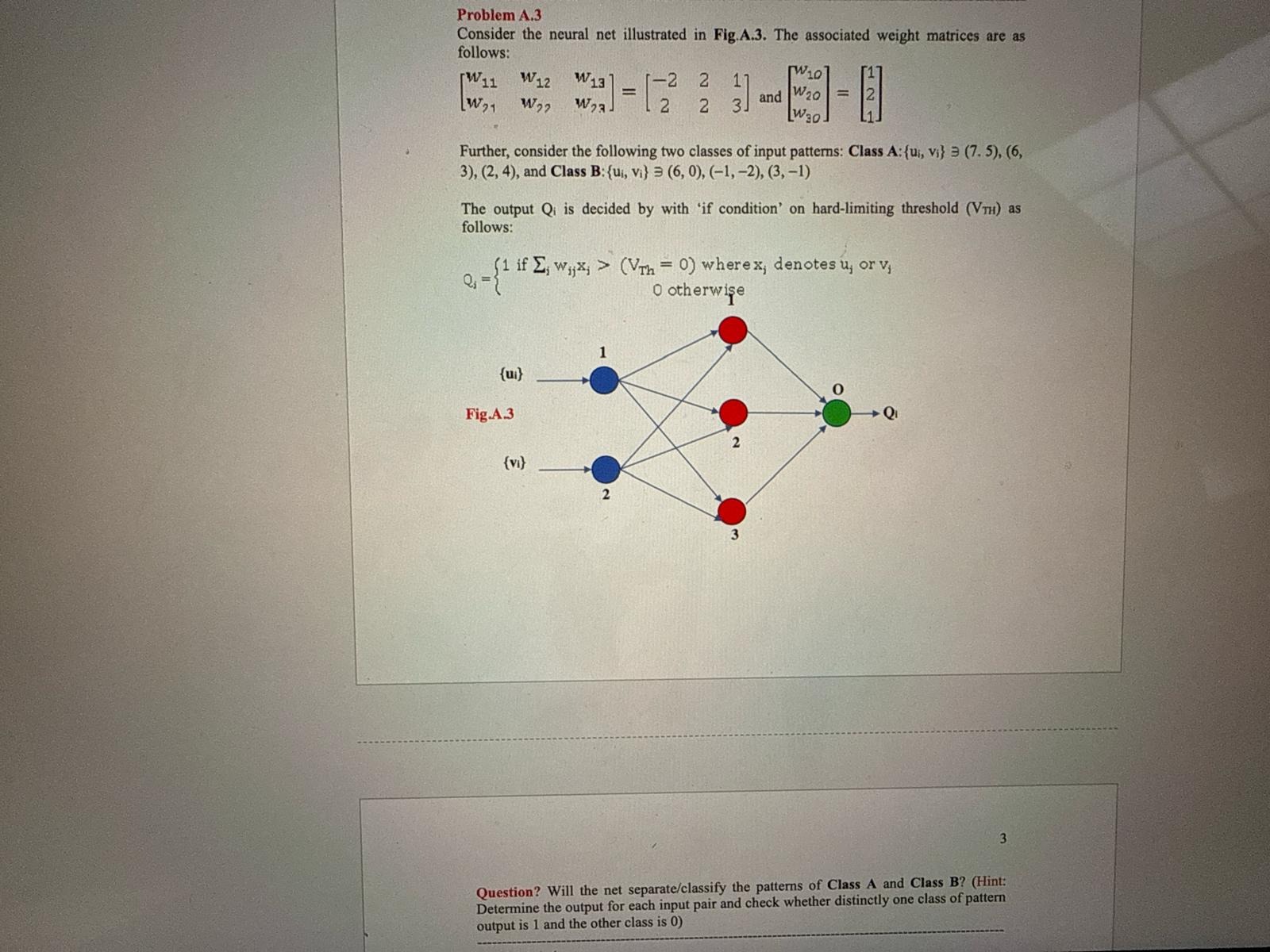

The problem you're working on involves a neural network as shown in Fig. A.3, along with associated weight matrices and input patterns.

Key elements:

1. Weight matrices:

   • The weights from layer 1 to layer 2 are represented by:
   \begin{bmatrix} -2 & 1 & 1 \\ 1 & 2 & 3 \end{bmatrix}$$ - The weight from layer 2 to the output is: $$W_o = \begin{bmatrix} 1 \\ 2 \end{bmatrix}$$

2. Input patterns:

   • Class A: Input pairs $(u_i, v_i)$ are $(7,5), (6,3), (2,4)$
   • Class B: Input pairs $(6,0), (-1,-2), (3,-1)$

3. Output Condition:

   • The output $Q_1$ is determined based on whether the sum of weighted inputs (dot product of weights and input) exceeds a threshold $V_{th}$.
   • If $\sum w_{ij} x_j > V_{th}$, the output is 1, otherwise it's 0.

Task:

You need to classify the input patterns for Class A and Class B by determining if the output $Q_1$ will be 1 for one class and 0 for the other, based on the weights and inputs.

Would you like me to proceed by calculating the output for each pattern using the given weight matrices?

Let me know if you'd like detailed step-by-step solutions, or if you have any questions!

Related Questions:

1. What are the individual contributions of each node in layers 1 and 2 to the final output $Q_1$?
2. How does changing the weight matrix affect the classification of patterns from Class A and B?
3. How would you set the threshold $V_{th}$ to optimize the separation between the two classes?
4. Can you generalize this process to more than two classes or layers?
5. What role do non-linearities (like activation functions) play in a neural network's ability to classify?

Tip: To better visualize and understand how the weights interact with inputs, drawing out each node's contributions step-by-step can clarify the flow of information.
