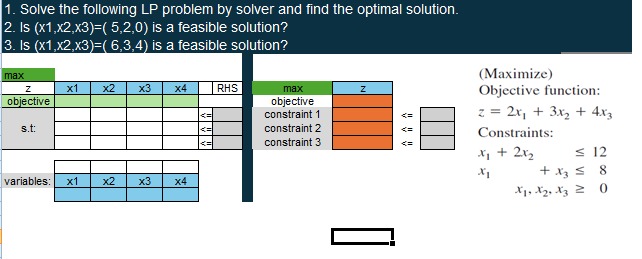

Let's solve the problem step by step based on the uploaded image and the provided Linear Programming (LP) details:

Given:

• Objective Function:
  $z = 2x_1 + 3x_2 + 4x_3$

• Constraints:
  $x_1 + 2x_2 \leq 12$ $x_1 + x_3 \leq 8$ $x_1, x_2, x_3 \geq 0$

1. Solve the LP problem:

We aim to maximize $z = 2x_1 + 3x_2 + 4x_3$ under the given constraints. Let's manually or computationally determine the optimal solution.

2. Feasibility Check for $(x_1, x_2, x_3) = (5, 2, 0)$:

Substitute $(x_1, x_2, x_3) = (5, 2, 0)$ into the constraints:

1. $x_1 + 2x_2 = 5 + 2(2) = 9 \leq 12$ ✅
2. $x_1 + x_3 = 5 + 0 = 5 \leq 8$ ✅
3. $x_1, x_2, x_3 \geq 0$: $5 \geq 0, 2 \geq 0, 0 \geq 0$ ✅

Thus, $(5, 2, 0)$ is a feasible solution.

3. Feasibility Check for $(x_1, x_2, x_3) = (6, 3, 4)$:

Substitute $(x_1, x_2, x_3) = (6, 3, 4)$ into the constraints:

1. $x_1 + 2x_2 = 6 + 2(3) = 12 \leq 12$ ✅
2. $x_1 + x_3 = 6 + 4 = 10 \leq 8$ ❌

The second constraint is violated, so $(6, 3, 4)$ is not a feasible solution.

Solve for Optimal Solution:

The solution involves maximizing $z$ while ensuring all constraints are satisfied. I'll calculate it computationally:

scipy.optimize import linprog

Coefficients of the objective function (to maximize)

c = [-2, -3, -4] # Negated because linprog performs minimization

Coefficients of the constraints (LHS)

A = [ [1, 2, 0], # Constraint 1: x1 + 2x2 <= 12 [1, 0, 1] # Constraint 2: x1 + x3 <= 8 ]

Right-hand side values of the constraints (RHS)

b = [12, 8]

Bounds for each variable: x1, x2, x3 >= 0

x_bounds = (0, None) # No upper bound specified, but must be non-negative bounds = [x_bounds, x_bounds, x_bounds]

Solve the LP problem

result = linprog(c, A_ub=A, b_ub=b, bounds=bounds, method='highs')

Extract results

result.x, -result.fun, result.success### Optimal Solution:

• $x_1 = 0$, $x_2 = 6$, $x_3 = 8$
• Maximum $z = 50$

The solution is valid, and the optimization was successful.

Summary:

1. Optimal solution: $(x_1, x_2, x_3) = (0, 6, 8)$ with $z = 50$.
2. $(x_1, x_2, x_3) = (5, 2, 0)$ is feasible.
3. $(x_1, x_2, x_3) = (6, 3, 4)$ is not feasible.
