Let's analyze the flow network to answer part **a**.

From the diagram:
- We observe flows coming into and out of various points (A, B, C, D, E) with specified flow values.

- Let's define the flow variables at each branch:
  - \( x_1 \): Flow from A to B
  - \( x_2 \): Flow from B to C
  - \( x_3 \): Flow from E to B
  - \( x_4 \): Flow from B to D
  - \( x_5 \): Flow from C to D
  - \( x_6 \): Flow from E to C

### Flow at Nodes (Conservation of Flow):
- **At Node A**: Incoming flow = 80, outgoing flow through \(x_1\).
  \( x_1 = 80 \)

- **At Node E**: Incoming flow = 50, outgoing flows through \(x_3\) and \(x_6\).
  \( 50 = x_3 + x_6 \)

- **At Node B**: Incoming flows = \(x_1 + x_3\), outgoing flows = \(x_2 + x_4\).
  \( x_1 + x_3 = x_2 + x_4 \)

- **At Node C**: Incoming flows = \(x_2 + x_6\), outgoing flow = \(x_5\).
  \( x_2 + x_6 = x_5 \)

- **At Node D**: Incoming flows = \(x_4 + x_5\), outgoing flow = 90.
  \( x_4 + x_5 = 90 \)

### Using these conservation equations:
1. \( x_1 = 80 \)
2. \( 50 = x_3 + x_6 \)
3. \( x_1 + x_3 = x_2 + x_4 \) or \( 80 + x_3 = x_2 + x_4 \)
4. \( x_2 + x_6 = x_5 \)
5. \( x_4 + x_5 = 90 \)

Now, solving these for minimum flows:

- From equation (2), we know that \( x_3 = 50 - x_6 \).
- Substitute \(x_3\) into equation (3):
  \( 80 + (50 - x_6) = x_2 + x_4 \) gives \( 130 - x_6 = x_2 + x_4 \) (equation 6).
- From equation (4), \( x_2 = x_5 - x_6 \).
- Substitute into equation (6): \( 130 - x_6 = (x_5 - x_6) + x_4 \).
- Simplify to get \( 130 = x_5 + x_4 \).

From equation (5), \( x_4 + x_5 = 90 \). Therefore, both \( x_4 \) and \( x_5 \) must solve \( x_4 + x_5 = 90 \) and \( x_4 + x_5 = 130 \), meaning these must be free variables.

Based on this, the correct configuration is **option B**, where \(x_1 = 80\) and the rest are free.

---

Would you like a more detailed explanation, or do you have any specific questions?

### Related questions:
1. How does the conservation of flow apply to networks with more nodes?
2. What happens if the flow directions change?
3. How do we compute maximum flow using the same principles?
4. Can this problem be generalized for larger networks?
5. What is the significance of identifying free variables in network flows?

**Tip**: When solving flow network problems, always start by analyzing nodes with known inflows and outflows first to simplify the system of equations.

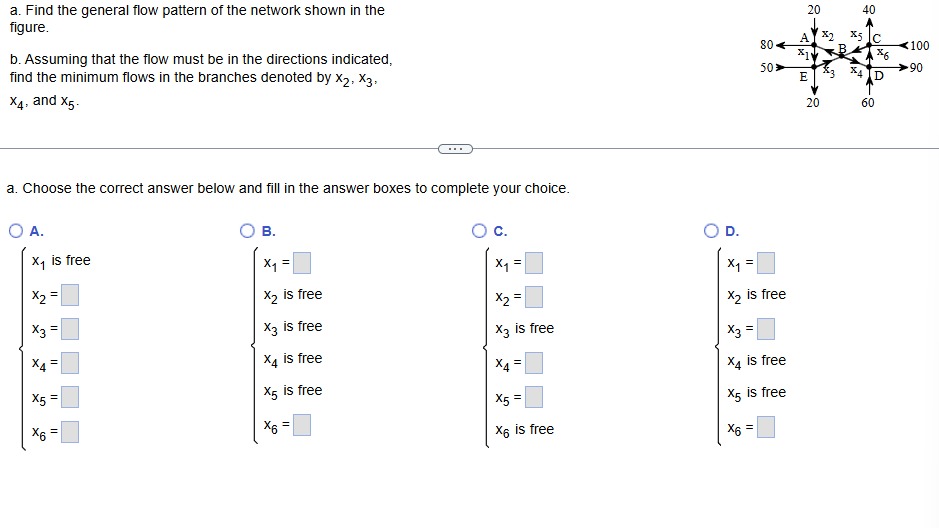

Find the general flow pattern of the network shown in the figure. Assuming that the flow must be in the directions indicated, find the minimum flows in the branches denoted by x2, x3, x4, and x5.

Analyze the flow pattern of a given network and calculate the minimum flows in specific branches. This problem covers flow conservation principles and solving linear equations in flow networks.
