To set up the dynamic equations for the two-link robot as described, let's analyze each component given in the problem:

1. **Link 1** has an inertia tensor \( C_1 \), given in matrix form:
   \[
   C_1 = \begin{bmatrix} I_{xx1} & 0 & 0 \\ 0 & I_{yy1} & 0 \\ 0 & 0 & I_{zz1} \end{bmatrix}
   \]
   This matrix \( C_1 \) represents the moment of inertia components of Link 1 around the respective axes \( x_1 \), \( y_1 \), and \( z_1 \).

2. **Link 2** has a concentrated mass \( m_2 \) at its endpoint. This means that the mass \( m_2 \) can be treated as a point mass located at the end of Link 2.

3. **Gravity** is assumed to act in the direction opposite to \( Z_1 \), indicating that the gravitational force affects Link 2’s endpoint mass \( m_2 \) in the downward direction in this coordinate setup.

### Steps to Set Up the Dynamic Equations

#### Step 1: Define Kinematics for Each Link
1. Determine the positions of each link in terms of joint variables (angles for revolute joints or displacements for prismatic joints).
2. Use transformations (like homogeneous transformations) to express the coordinates of each link in terms of a common base frame.

#### Step 2: Apply the Lagrangian Mechanics Approach
1. **Kinetic Energy**:
   - For Link 1, express its kinetic energy based on its rotational inertia tensor \( C_1 \) and angular velocities.
   - For Link 2, calculate its kinetic energy by considering it as a point mass moving due to the motion of Link 1 and its own joint variable.

2. **Potential Energy**:
   - Only Link 2 contributes to potential energy due to gravity, as it is affected by the gravitational field.

#### Step 3: Derive the Equations of Motion
1. Form the Lagrangian \( \mathcal{L} = T - V \), where \( T \) is the total kinetic energy and \( V \) is the total potential energy.
2. Use the Euler-Lagrange equation:
   \[
   \frac{d}{dt} \left( \frac{\partial \mathcal{L}}{\partial \dot{q}_i} \right) - \frac{\partial \mathcal{L}}{\partial q_i} = \tau_i
   \]
   for each generalized coordinate \( q_i \) (joint variables), where \( \tau_i \) represents the generalized force or torque.

This process will yield a set of second-order differential equations that represent the dynamics of the two-link robotic arm.

Would you like me to provide detailed calculations for the kinetic and potential energies, or go further with each step of the derivation?

### Related Questions
1. How can the inertia tensor \( C_1 \) be determined experimentally or through calculation for Link 1?
2. What simplifications can be made if Link 1 is assumed to have no mass?
3. How would the dynamic equations change if Link 2 had a distributed mass rather than a concentrated point mass?
4. How does the direction of gravity impact the potential energy calculation?
5. What effect would adding a third link have on the complexity of the dynamic equations?

### Tip
In robotics, using the **Denavit-Hartenberg (D-H) parameters** can greatly simplify kinematic calculations by standardizing the way transformations between links are set up.

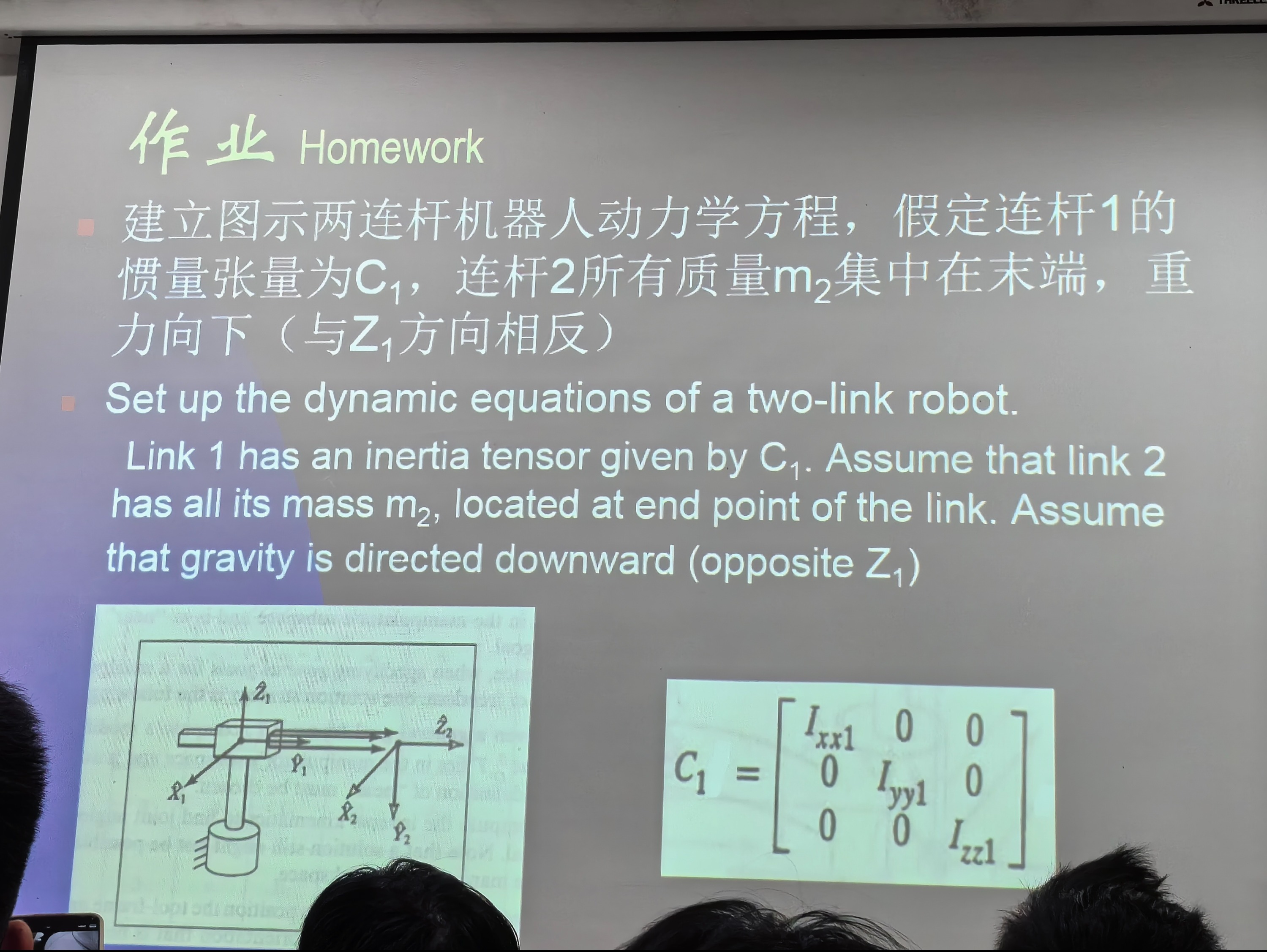

Set up the dynamic equations of a two-link robot. Link 1 has an inertia tensor given by C_1. Assume that link 2 has all its mass m_2, located at the end point of the link. Assume that gravity is directed downward (opposite Z_1).

Set up the dynamic equations for a two-link robot where link 1 has an inertia tensor C_1 and link 2 has a concentrated mass m_2 at its end. Learn how to apply Lagrangian mechanics and derive equations of motion using the Euler-Lagrange equation.
