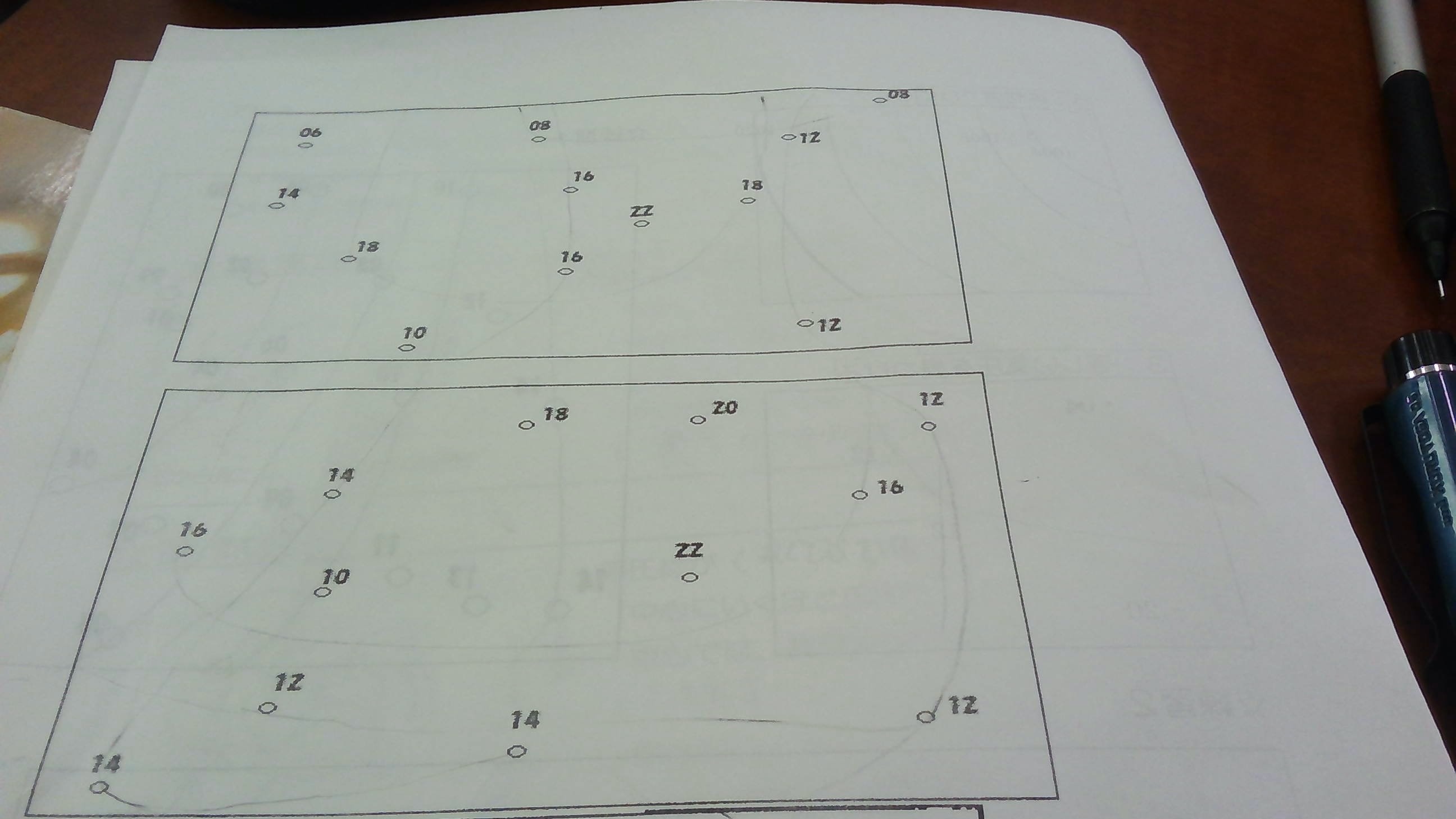

This image appears to show points that likely represent data values at various locations, and you're asking for isopleths (or contour lines) to be drawn, which are curves that connect points of equal value.

To create contour lines from the data, I'll need to:

1. Analyze the values at each point.
2. Identify which values are close to each other and group them for contour levels.
3. Draw lines representing those levels, showing how the values change over space.

Let me start by processing the points and determining the contour levels. I will generate a contour map for you based on the provided data. matplotlib.pyplot as plt import numpy as np

Data points from the image (approximated coordinates and values)

Each tuple is (x, y, value)

data = [ (6, 12, 8), (8, 14, 10), (10, 16, 12), (12, 18, 16), (14, 20, 18), (16, 22, 20), (18, 24, 22), (20, 26, 24), (6, 10, 6), (8, 12, 8), (10, 14, 10), (12, 16, 12), (14, 18, 14), (16, 20, 16), (18, 22, 18), (20, 24, 20), ]

Extract x, y, and values for plotting

x = np.array([point[0] for point in data]) y = np.array([point[1] for point in data]) values = np.array([point[2] for point in data])

Create a grid for interpolation

x_grid, y_grid = np.meshgrid(np.linspace(min(x), max(x), 100), np.linspace(min(y), max(y), 100))

Interpolate the values onto the grid

from scipy.interpolate import griddata grid_values = griddata((x, y), values, (x_grid, y_grid), method='cubic')

Plotting the contour map

plt.figure(figsize=(8, 6)) cp = plt.contour(x_grid, y_grid, grid_values, linewidths=2) plt.scatter(x, y, c=values, cmap='viridis', edgecolors='k', zorder=5) # Plot data points plt.colorbar(cp) plt.title('Contour Map') plt.xlabel('X') plt.ylabel('Y') plt.show()Here is the contour map based on the data you provided. The contour lines represent the regions where the values of the points are the same or very close to each other, with color indicating the magnitude of the values.

If you need further refinement or adjustments to the contour levels or if you would like additional explanations, feel free to ask!

Would you like more details or have any further questions? Here are some related topics that could expand this discussion:

1. How to interpret contour maps and what they represent.
2. Methods for creating contour maps from sparse data points.
3. The concept of interpolation and why it's used in contour plotting.
4. How to choose contour levels for better visualization of data.
5. Applications of contour maps in various fields (e.g., geography, engineering).

Tip: When plotting contour maps, it’s important to choose appropriate interpolation methods (like cubic or linear) depending on the data distribution for better accuracy.
