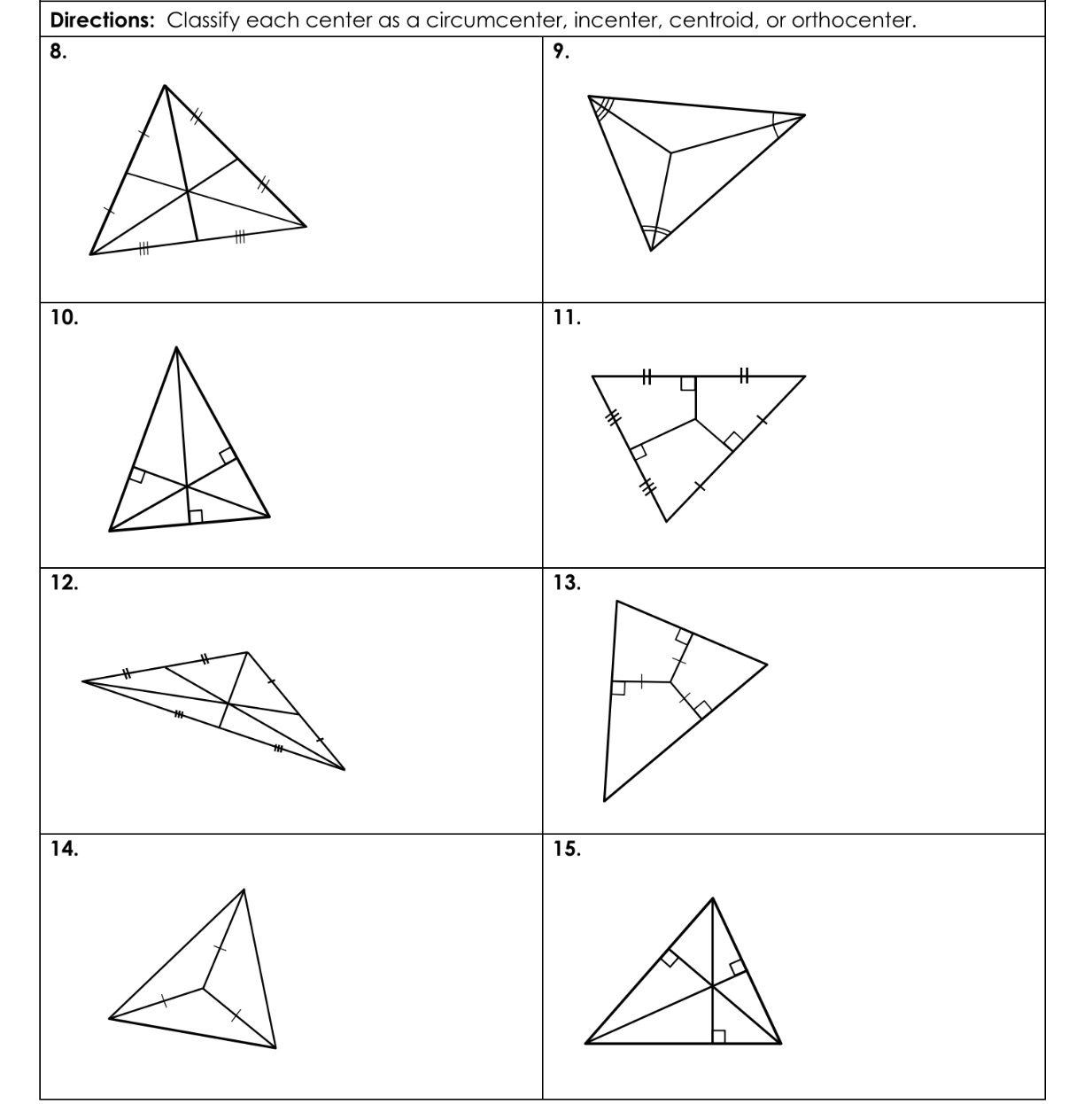

To classify each center as a circumcenter, incenter, centroid, or orthocenter, let's analyze each diagram based on their properties:

1. Diagram 8:

   • This shows a triangle with all three medians intersecting at a single point.
   • This point is the centroid, the point where the medians (segments connecting each vertex to the midpoint of the opposite side) meet.

2. Diagram 9:

   • This diagram has angle bisectors converging at a point inside the triangle.
   • This point is the incenter, the center of the circle inscribed within the triangle.

3. Diagram 10:

   • This figure displays perpendicular bisectors intersecting at a point outside the triangle.
   • This intersection point is the circumcenter, which is equidistant from all three vertices of the triangle and the center of the circumscribed circle.

4. Diagram 11:

   • The lines drawn in this figure are medians that intersect at a point inside the triangle.
   • Like Diagram 8, this point is the centroid.

5. Diagram 12:

   • This diagram shows angle bisectors converging at a point inside the triangle.
   • The convergence point is the incenter, the center of the inscribed circle.

6. Diagram 13:

   • Here, we see altitudes (or heights) of the triangle intersecting at a single point.
   • This point is the orthocenter, where all altitudes of the triangle meet.

7. Diagram 14:

   • This diagram has perpendicular bisectors meeting at a point inside the triangle.
   • This point is the circumcenter, the center of the circumscribed circle.

8. Diagram 15:

   • This figure shows altitudes intersecting at a single point.
   • This intersection point is the orthocenter.

Here's a summary:

• Diagram 8: Centroid
• Diagram 9: Incenter
• Diagram 10: Circumcenter
• Diagram 11: Centroid
• Diagram 12: Incenter
• Diagram 13: Orthocenter
• Diagram 14: Circumcenter
• Diagram 15: Orthocenter

Would you like further details on each type of center or have any specific questions?

Here are five related questions to expand your understanding:

1. How is the circumcenter's position relative to the triangle affected by the type of triangle (acute, obtuse, or right)?
2. What properties make the centroid unique compared to the other centers?
3. How does the orthocenter's location change with different types of triangles?
4. Can a triangle have multiple centers at the same point? If so, under what conditions?
5. Why is the incenter always located inside the triangle?

Tip: Remember that each triangle center (centroid, incenter, circumcenter, and orthocenter) serves a unique geometric purpose and has distinct properties related to distance, angle, or side relationships within the triangle.
