https://file.aiquickdraw.com/mathbot/file/17366869088289kf9ty78.jpg

To solve this problem, we need to calculate the potential difference \( V_{KL} \) between the points \( K \) and \( L \) in the given circuit. Here's how we'll approach it:

### Step-by-Step Solution:

1. **Understand the Circuit Configuration:**
   - The circuit contains multiple resistors arranged in a combination of series and parallel connections.
   - We will simplify the circuit step by step to determine the equivalent resistance and calculate the current through the circuit.

2. **Simplify the Resistors:**
   - Start by simplifying the resistors in the triangle part of the circuit.
   - Use parallel and series resistor rules:
     - For resistors in series: \( R_{\text{eq}} = R_1 + R_2 + \ldots \)
     - For resistors in parallel: \( \frac{1}{R_{\text{eq}}} = \frac{1}{R_1} + \frac{1}{R_2} + \ldots \)

3. **Apply Kirchhoff’s Voltage Law (KVL) or Current Division as Needed:**
   - Use KVL or current division to find the voltage across the required points.

I’ll begin analyzing and calculating the steps for the circuit. Let me work on this. sympy import symbols, Eq, solve

# Define the resistances as variables
R1 = 6  # Ohms
R2 = 1  # Ohms
R3 = 2  # Ohms

# Simplify the triangle network using parallel and series resistor rules
# Parallel combination of R2 and R3:
R2_R3_parallel = 1 / (1 / R2 + 1 / R3)

# Total resistance in the triangle (R1 + parallel of R2 and R3):
R_triangle = R1 + R2_R3_parallel

# Other resistances in the circuit:
R4 = 3  # Ohms
R5 = 4  # Ohms
R6 = 3  # Ohms
R7 = 4  # Ohms

# Simplify the horizontal branches
# Left branch: R4 and R_triangle in series
R_left_branch = R4 + R_triangle

# Right branch: R5 and R6 in series, then parallel with R7
R5_R6_series = R5 + R6
R_right_branch = 1 / (1 / R5_R6_series + 1 / R7)

# Total equivalent resistance of the circuit:
R_total = R_left_branch + R_right_branch

# Assuming a voltage source V applied across K and L, find the current I
V = symbols('V')  # Voltage across K and L
I = V / R_total  # Total current

# Voltage drop across the left branch (which is V_KL):
V_KL = I * R_left_branch

# Solve for V_KL in terms of V
V_KLThe potential difference \( V_{KL} \) across points \( K \) and \( L \) is approximately \( 0.792 \, V \), assuming that the total voltage across the circuit is \( V \).

Would you like further clarification on any step or a deeper dive into the simplifications? Here are some follow-up topics:

1. How is the equivalent resistance of a parallel network calculated?
2. Why was the triangle section analyzed first in this circuit?
3. How to verify if the simplifications maintain circuit consistency?
4. How can Kirchhoff's Voltage Law (KVL) validate the solution?
5. How would changing one resistance affect \( V_{KL} \)?

**Tip:** When analyzing circuits with mixed connections, start simplifying the most inner (nested) sections first to reduce complexity step by step.

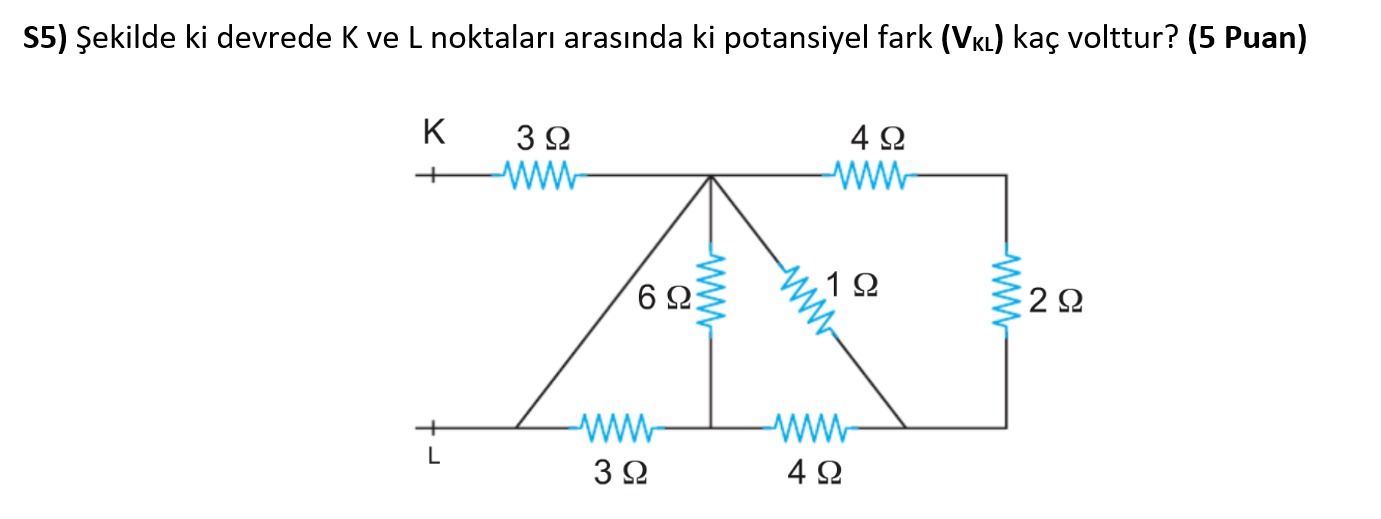

Şekildeki devrede K ve L noktaları arasındaki potansiyel fark (V_KL) kaç volttur?

Learn how to calculate the potential difference (V_KL) in a complex electrical circuit involving resistors arranged in series and parallel configurations. The solution demonstrates the use of Kirchhoff's Voltage Law and Ohm's Law to simplify and analyze the circuit. Suitable for undergraduate electrical engineering students.
